E2S   STB2ACR

SKU# (4436)



E2S STB2ACR

ALARM SIGNAL DEVICES / WEATHERPROOF
STATUS LIGHTS & HORN

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
E2S STB2 Xenon & LED Tower. Features Junction box assembly for 2 AlertAlight L101 type beacons. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

STB2ACR
Please Email us your request for quote

Voltage
Housing Color
UL
Metric Adaptor

  [  2 Weeks  ]
6 Variants of base SKU

The STB2 is a customisable visual signal featuring a tower of 2 AlertAlight L101 type beacons.

Each beacon position can contain either a Xenon or high output L.E.D. light source. The STB2 assembly features a pre-wired junction box and cable loom enabling the end user to determine beacon type and position during installation.

Features:
  • Multiple configurations of Xenon and L.E.D. beacons.
  • Internal cable loom and termination PCB simplifies installation.
  • Common negative/neutral supply minimises cabling.
  • Available with red, white or grey housing.
  • High output L.E.D. unit can be set to steady or flashing.
  • Sealed to IP66.
  • Tropicalisation available on request.
  • Can be combined with Sonora SONF1 audible signal - see the STA2 /3/4 data sheets.
Approvals:

  • UL & cULs approved: General signalling use.
  • EAC compliant: RU D-G B.AL16.B.11083

Specification
General:
Cable entries: 2 x M20 clearance
Ingress protection: IP66
Housing material: UL94 V0 & 5VA FR ABS
Housing Colour: RAL3000 Red, RAL7038 grey and white.
Lens material: PC
Fixings: Stainless Steel
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
STB2 Weight: 0.65kg/1.43Ibs
L101X - Xenon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Effective candela: 250 cd - calculated from energy (J)
Peak Candela: 86,935 cd* - measured ref. to I.E.S.
Effective candela: 200 cd* - measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm2 cables.
Lens colours: Amber, Blue, Clear, Green & Red
Tube life : Emissions are reduced to 70% after 8 million flashes
L101H - L.E.D:
Light source: High intensity L.E.D. array.
Options: Steady or 2 Hz flash mode (on board selection)
Peak/Effective Intensity cd: Green L.E.D: 176cd - measured ref. to I.E.S.
Terminals: 0.5 to 4.0mm2 cables
L.E.D. colours: Amber Blue, Green, Red and White
Lens colour: All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light levels.
Export Info
Made inUnited Kingdom
Harmonized Tariff Code (HTC)8531800010

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    2 Items found.
ST-L101XAC115A
(4440)

E2S  ST-L101XAC115A

E2S ST-L101X compact and robust 5 Joule Xenon Strobe Beacon for STA or STB junction boxes. Standard 1Hz flash rate. 12VAC, 24VAC, 48VAC, 115VAC, 230VAC, 12VDC, 24VDC or 48VDC Versions. Stainless steel fixings. IP66. CPD, VdS and GOST-R Approved. Optional UL version. Back box not included.

Configure


ST-L101HDC024A
(4439)

E2S  ST-L101HDC024A

E2S ST-L101H compact and robust LED Array Beacon for STA or STB junction boxes. 24 Superflux type high output LEDs. Over 120 candela of light. Steady or flashing mode. 24DC or 230AC. IP66. GOST-R approved. Optional UL version.

Configure


> STATUS LIGHTS & HORN :    8 Items found.
STB3ACR
(4437)

E2S  STB3ACR

E2S STB3 Xenon & LED Tower. Features Junction box assembly for 3 AlertAlight L101 type beacons. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

Configure

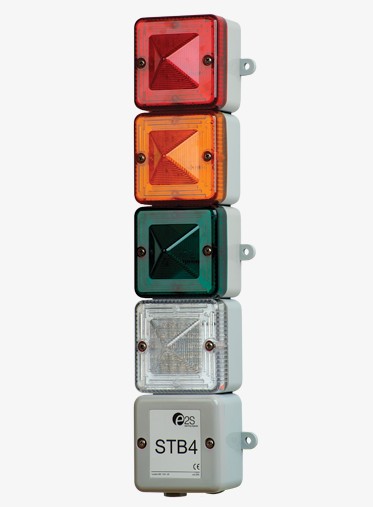

STB4ACG
(4438)

E2S  STB4ACG

E2S STB4 Xenon & LED Tower. Features Junction box assembly for 4 AlertAlight L101 type beacons. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

Configure

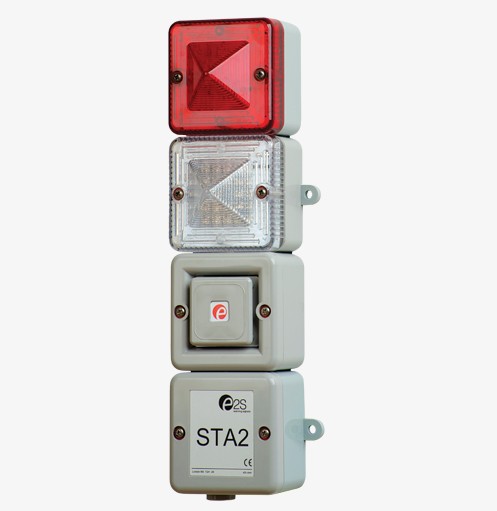

STA2DC024R
(4433)

E2S  STA2DC024R

E2S STA2 Alarm Horn with Xenon & LED Tower. Features Junction box & SONF1 assy for 2 AlertAlight L101 type beacons and 1 SONF1 alarm sounder. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

Configure

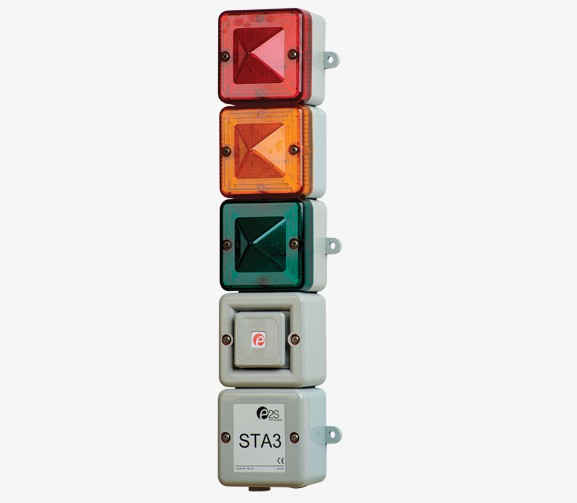

STA3DC024R
(4434)

E2S  STA3DC024R

E2S STA3 Alarm Horn with Xenon & LED Tower. Features Junction box & SONF1 assy for 3 AlertAlight L101 type beacons and 1 SONF1 alarm sounder. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

Configure

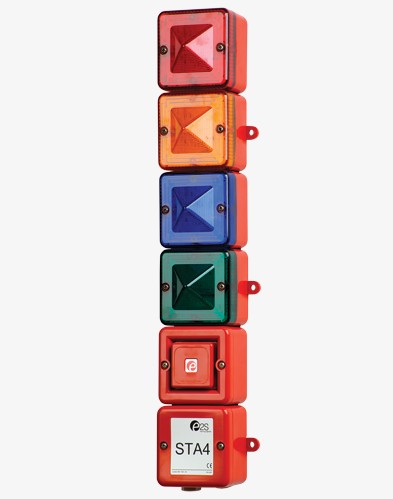

STA4AC115R
(4435)

E2S  STA4AC115R

E2S STA4 Alarm Horn with Xenon & LED Tower. Features Junction box & SONF1 assy for 4 AlertAlight L101 type beacons and 1 SONF1 alarm sounder. Each beacon position can contain either a Xenon or high output L.E.D. light source. IP66.

Configure

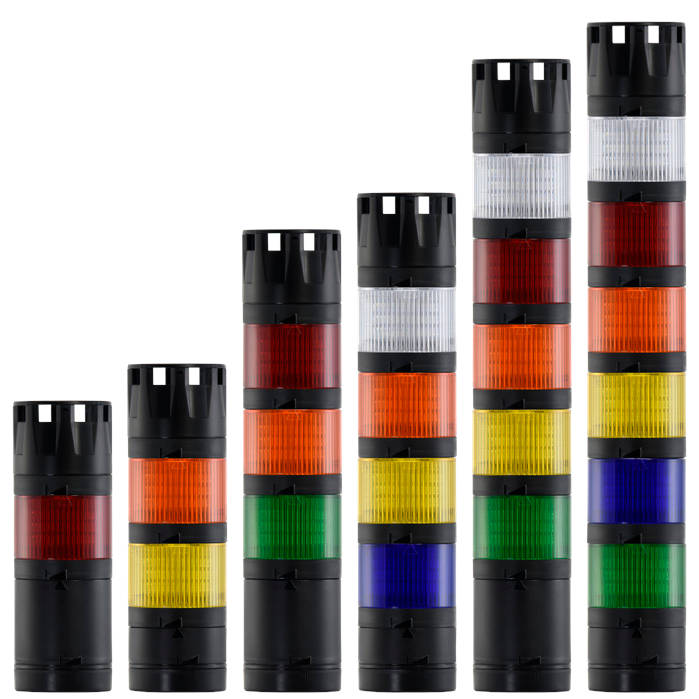

SL3-_24-R____-B
