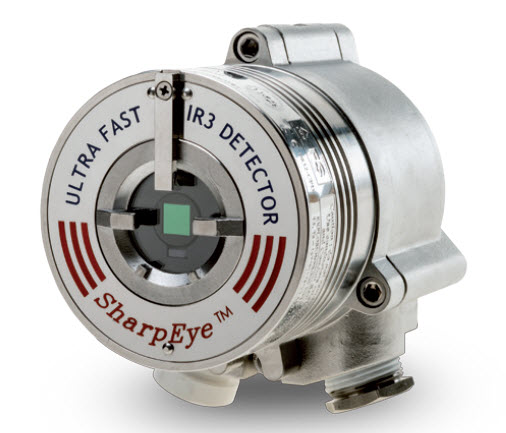

SPECTREX SharpEye 40/40UFI Ultra Fast Triple IR (IR3) multi spectrum Flame Detector. Detects hydrocarbon fuel and gas fires at long distances with the highest immunity to false alarms. Include a heated window to eliminate condensation and icing, HART capability, Automatic Built-In-Test (BIT), 3 Relays for Alarm, Fault and auxiliary and RS-485 Modbus output. IP66 and IP67. ATEX, IECEx, FM, CSA and SIL2 Approved. Capable for Zones 1, 2, 21 & 22. *** Phased Out replaced by 40/40D-I ***

Inquiry

The new 40/40UFI, an Ultra-Fast multi- spectrum IR3 Flame Detector, detects hydrocarbon fuel and gas fires at long distances, and is especially designed to detect an explosive 1 ft (0.3m) diameter gas cloud explosion in max. 50 msecs for 1ft diameter sphere methane-air mixture explosion at 66 ft (20m) with the highest immunity to false alarms. The 40/40UFI IR3 can also detect a 1 ft 2 (0.1m 2 ) gasoline/ n-Heptane pan fire at up to 300 ft (90m). The 40/40UFI is part of the 40/40 Series, the most durable and weather resistant range of flame detectors currently on the market. Features include a heated window, to eliminate condensation and icing; HART capability for digital communications; lower power requirements; and a compact, lighter design. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved per IEC 61508.

FEATURES & BENEFITS
  • Multi Spectrum Design - for long distance detection and high false alarm immunity
  • High Speed Response - 50 msec
  • Sensitivity Selection - to ensure no zone crossover detection
  • Automatic Built-In-Test (BIT) - to assure continued reliable operation
  • Heated window - for operation in harsh weather conditions (snow, ice, condensation)
  • Multiple output options for maximum flexibility and compatibility
    • Relays (3) for Alarm, Fault and Auxiliary
    • Analogue output for fast detection
    • 0-20mA (stepped)
    • HART Protocol for maintenance and asset management
    • RS-485, Modbus Compatible
  • High Reliability - MTBF - minimum 150,000 hours
  • Safety Integrity Level SIL2 (TUV)
  • 5-Year Warranty
  • User Programmable via HART or RS-485
  • Hazardous area zones:
    • Zones 1 & 2 with IIC gas group vapors present
    • Zones 21 & 22 with IIIC dust type present
  • Ex approved to:
    • ATEX & IECEx
    • FM/FMC/CSA
  • 3 rd party Performance
    • EN54-10 (VdS)
    • FM3260 (FM)
APPLICATIONS
  • Offshore Oil & Gas installations
  • Onshore Oil & Gas installations and pipelines
  • Chemical plants
  • Petrochemicals plants
  • Storage Tank farms
  • Aircraft hangars
  • Power Generation facilities
  • Pharmaceutical Industry
  • Printing Industry
  • Warehouses
  • Automotive Industry
  • Explosives & Munitions
  • Waste Disposal facilities

GENERAL SPECIFICATIONS
Spectral Response Three IR Bands
Detection Range
(at highest Sensitivity Setting for 1ft2 (0.1m2) pan fire)
Fuel ft / m
n-Heptane 300 / 90
Gasoline 300 / 90
Diesel Fuel 205 / 62
JP5 205 / 62
Kerosene 205 / 62
Ethanol 95% 185 / 55
Methanol 160 / 48
IPA (Isopropyl Alcohol 185 / 55
Methane* 205 / 62
LPG* 205 / 62
Polypropylene Pellets 160 / 48
Office Paper 115 / 34
* 30" (0.75m) high, 10" (0.25m) width plume fire
High Speed Response50 msec for 1ft diameter sphere methane-air mixture explosion at 66ft (20m)
Response TimeTypically 1 sec at 215ft (65m)
Typically 10 sec at 300ft (90m)
Adjustable Time DelayUp to 30 seconds
Sensitivity Ranges4 Sensitive ranges for 1 ft 2 (0.1m 2 ) n-heptane pan fire from 66 ft (20m) to 300 ft (90m)
Field of ViewHorizontal 100o; Vertical 95o
Built-in-Test (BIT) Automatic
Temperature Range Operating: -67ºF to +167ºF (-55ºC to +75ºC)
Option: -67ºF to +185ºF (-55ºC to +85ºC)
Storage: -67ºF to +185ºF (-55ºC to +85ºC)
HumidityUp to 95% non-condensing (withstands up to 100% RH for short periods)
Heated OpticsTo eliminate condensation and icing on the window
ELECTRICAL SPECIFICATIONS
Operating Voltage 24 VDC nominal (18-32 VDC)
Power ConsumptionStandby: Max. 90mA (110mA with heated window)
Alarm: Max. 130mA (160mA with heated window)
Cable Entries 2 x 3/4" - 14NPT conduits or 2 x M25 x 1.5 mm ISO
Wiring12 - 22AWG (0.3mm 2 - 2.5mm 2 )
Electrical Input Protection According to MIL-STD-1275B
Electromagnetic CompatibilityEMI/RFI protected to EN61326-3 and EN61000-6-3
Electrical InterfaceThe detector includes twelve (12) terminals with five (5) wiring options (factory set)
OUTPUTS
Relays Alarm, Fault and Auxiliary
SPST volt-free contacts rated 2A at 30 VDC
0-20mA (stepped) Sink (source option) configuration
Fault: 0 +1mA
BIT Fault: 2mA ± 10%
Normal: 4mA ± 10%
Warning: 16mA ± 5%
Alarm: 20mA ± 5%
Resistance Loop: 100-600 Ω
HART Protocol Optional HART communications on the 0-20mA analog current (FSK) - used for maintenance, configuration changes and asset management, available in mA source output wiring options
RS-485RS-485 Modbus compatible communication link that can be used in computer controlled installations
MECHANICAL SPECIFICATIONS
Materials
Enclosure options		 - Stainless Steel 316L with electro polish finish
- Heavy duty copper free aluminum (less than 1%), red epoxy enamel finish
MountingStainless Steel 316L with electro polish finish
DimensionsDetector: 4" x 4.6" x 6.18" (101.6 x 117 x 157 mm)
WeightDetector (St.St.) 6.1 lb (2.8 kg)
Detector, aluminum 2.8 lb (1.3 kg)
Tilt mount 2.2 lb (1.0 kg)
Environmental StandardsMeets MIL-STD-810C for Humidity, Salt & Fog, Vibration, Mechanical Shock, High Temp, Low Temp
Water and Dust IP66 and IP67 per EN60529, NEMA 250 6P
APPROVALS
Hazardous Area
ATEX and IECEx Ex II 2 GD,
  Ex d e IIC T5 Gb Ex d e IIC T4 Gb
  Ex tD A21 IP66/X7 T 95ºCEx tb IIIC T96°C Db (-55°C ≤ Ta ≤ +75°C) Ex tb IIIC T106°C Db (-55°C ≤ Ta ≤ +85°C)
FM / CSA Class I Div. 1, Groups B, C & D
  Class II/III Div. 1, Groups E, F & G
PerformanceEN54-10 (VdS)
FM3260
ReliabilityIEC61508 - SIL2 (TUV)
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)90318099

 Info/Quote Request
 Reseller & Volume Discounts
